In the vast system of industrial automation, when connection requirements upgrade from "signal transmission" to "power supply", more stringent requirements are imposed on the performance of connectors. Compared with the compact M16 connectors, 7/8" connectors have become an indispensable "power bridge" in the field of high-power equipment due to their stronger load capacity and robust characteristics. Today, we will conduct an in-depth analysis of this industrial connector specifically designed for power transmission.

I. Understanding the Backbone of Industrial Power Transmission: 7/8" Connectors

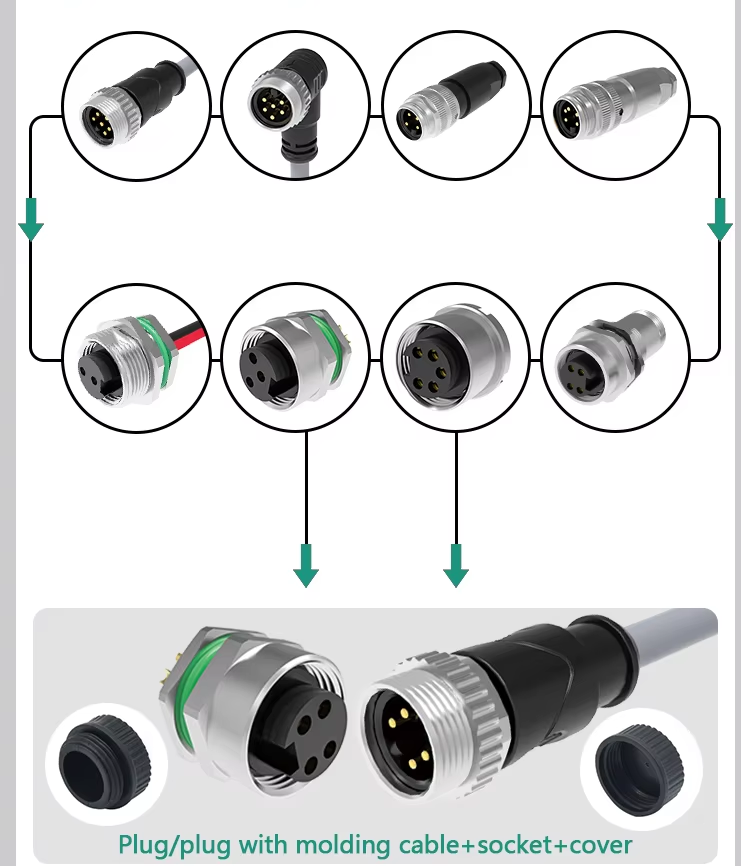

7/8" connectors refer to a type of circular connector with a nominal diameter of 7/8 inch (approximately 22 millimeters) for its threaded interface. It is mainly designed to transmit higher current and voltage, and plays a core role in scenarios such as servo motors, frequency converters, heavy machinery, and power distribution with its sturdy mechanical structure, excellent electrical performance, and high reliability.

II. Core Advantages and Professional Characteristics of 7/8" Connectors

Strong current-carrying capacity: Thanks to the larger interface diameter and thicker conductive terminals, 7/8" connectors can stably carry higher current (usually up to 16A or more) and voltage, easily meeting the application scenarios such as motor drive and high-power equipment power supply.

Excellent connection reliability: Different from the metric threads of M-series connectors, 7/8" connectors usually adopt Whitworth threads. This thread design has stronger anti-vibration and anti-loosening capabilities, and through a robust screw-locking mechanism, it ensures that the connection remains unbreakable under frequent start-stop and strong vibration of high-power equipment.

Robust environmental adaptability: Professional 7/8" connectors also provide a high level of protection, such as IP67, which can effectively resist the invasion of oil, dust, and moisture common in industrial sites, ensuring the continuous and stable power transmission and reducing equipment downtime caused by connection problems.

Clear polarity error prevention: Similar to signal connectors, 7/8" power connectors also have a key positioning function. This design can effectively prevent equipment damage or short-circuit risks caused by incorrect insertion, greatly improving the safety and convenience of on-site installation.

III. Professional Selection to Empower Efficient Systems

When selecting 7/8" connectors, professional considerations are the cornerstone of system stability. We recommend that you focus on:

Current/voltage rating: Precisely match according to the power requirements of the driven equipment.

Protection level (IP code): Ensure it is compatible with the operating environment of your equipment.

Cable specifications: Select the matching cable outer diameter and conductor cross-section to ensure the best electrical performance.

As your trusted industrial connection partner, we deeply understand the harsh requirements of high-power applications for connectors. Our 7/8" connector series products, from raw materials to precision craftsmanship, implement the highest standards, aiming to provide the safest and most efficient power connection solutions for your core equipment.

The way to gather strength lies in stable connections. Choose our 7/8" connectors to build a solid line of defense for your industrial power system.
