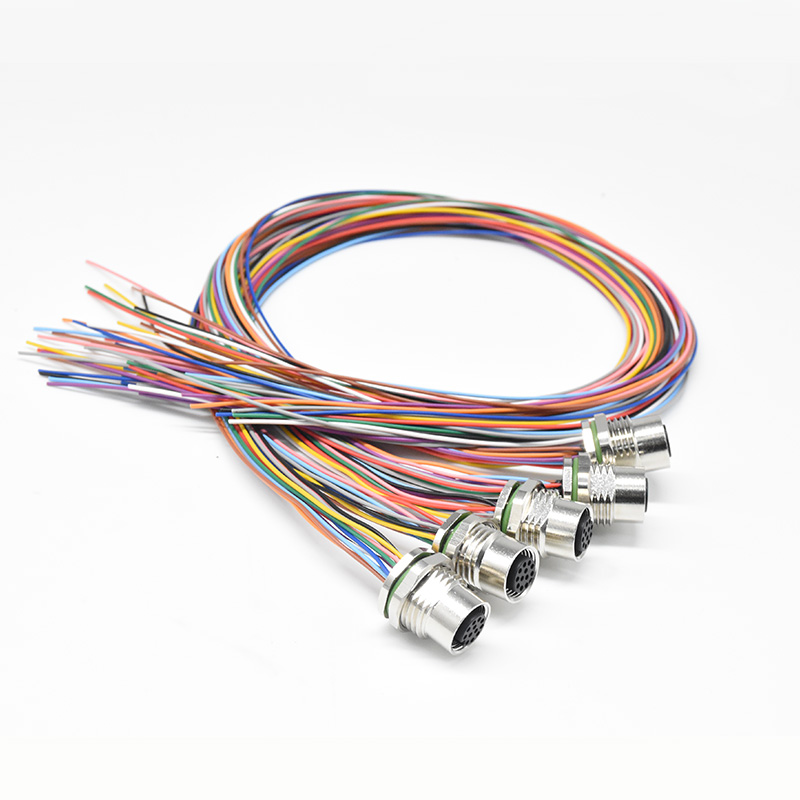

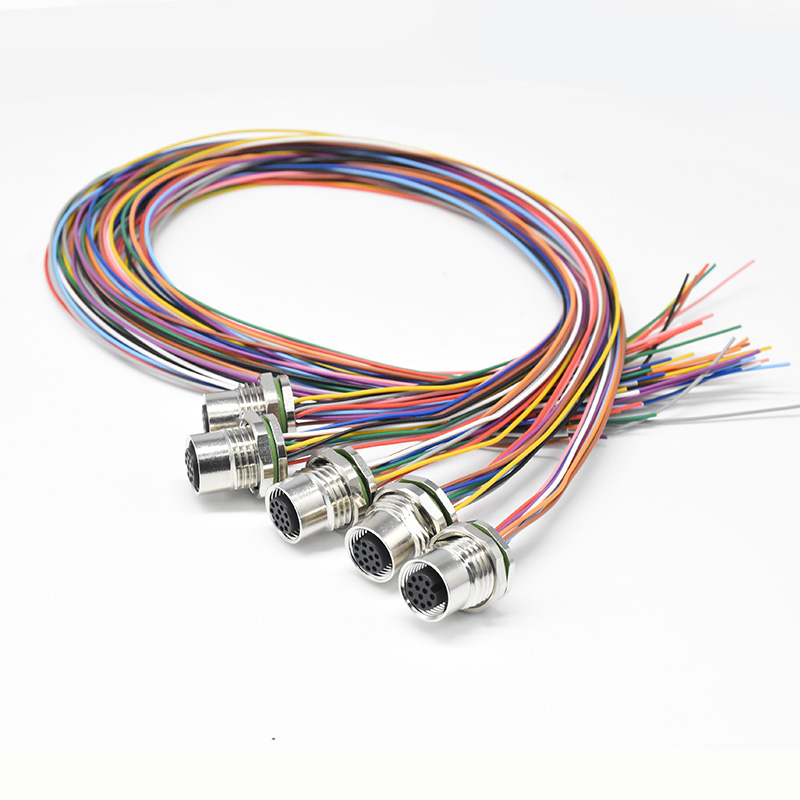

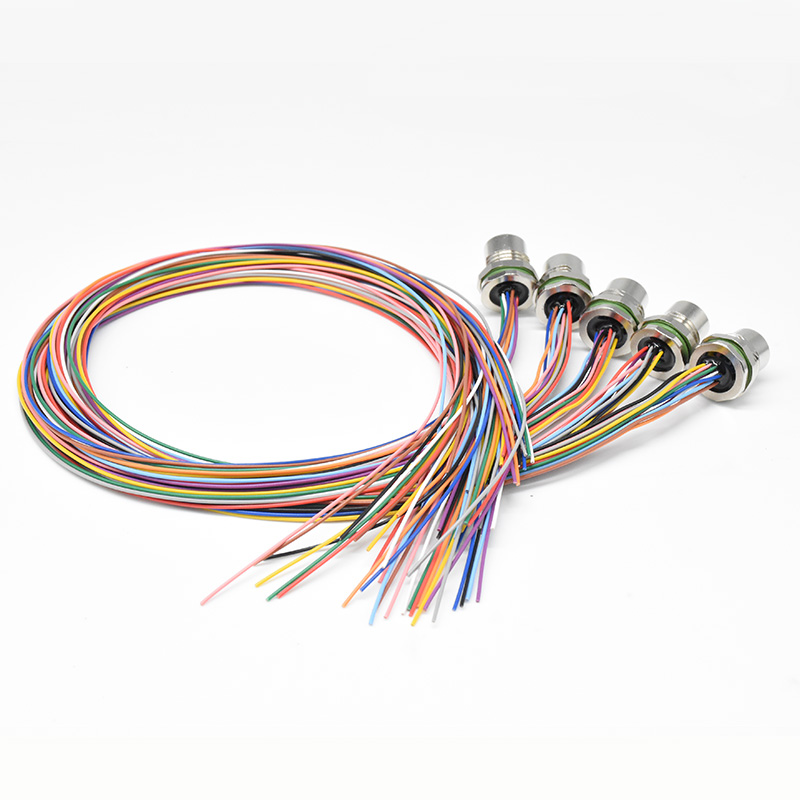

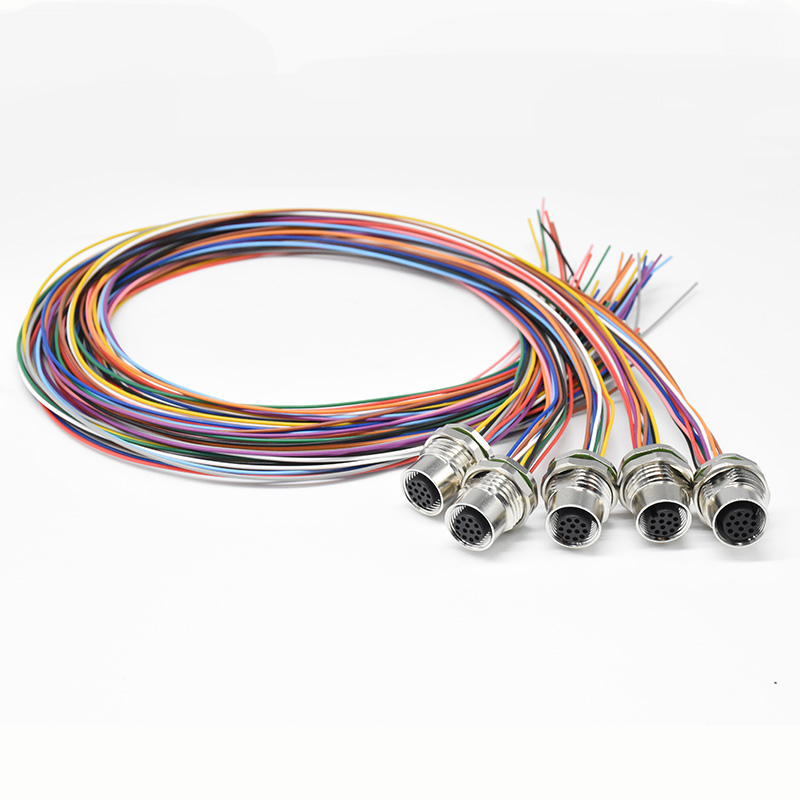

M12 A-coded 12-pin front fastened socket with 500mm cable
Quantity：
产品详情
属性
600-6666-8888
Contact Us
USD
English
Product Center
Solution
Service
Resource
About Us
Customer Support
© 2024 WESTSAINT. All rights reserved.
Rated current | 1.5A |
Salt mist | 48h |
Protection rate | IP67 |
Rated voltage | 30V |
Withstand voltage | 500V |
Wire gauge | 26AWG |
Contacts Material | Gold-plated copper |
Shell material | Nickel-plated copper |
Operation temperature | -25℃-+85℃ |
Contact resistance | 3mΩ |
Mechanical operation | ≥100 |
Mounting hole dimensions | M16×1.5 |
