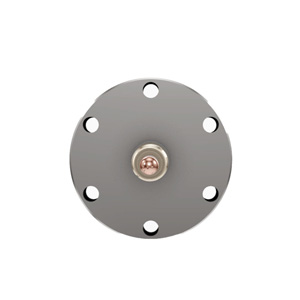

CF2.75 Flanged Hermetic Connector
Stock Status：In Stock 999
Weight：0 KG
Model：单针铜陶瓷密封贯通件
Price：$69.85
Quantity：
产品详情
属性
Parameter
Rated current | 3.6A～185A |
Rated voltage | 12/25/30/50KV |
Operation temperature | -269℃～+450℃ |
Contact material | Stainless Steel 304 / Copper / Molybdenum / Nickel / Nickel-Plated Steel |
Installation type | Welding / KF40 / CF2.75 |
Airtightness | 1×10⁻¹⁰Pa·m³/s |
Conductor Diameter | 2.39/6.35mm |
